Nylon Cable Ties
Niuli Electric has more than 10 years of experience in designing and manufacturing cable ties, and materials are 100% fresh nylon PA imported from USA, which quality is far beyond the international standard. So far they have certified by UL, CE, ROHS, REACH, etc. And can stand for high and low temperature, flame retardant, UV resistant, good resistance to alkali, oil, grease, oil derivatives and chloride solvents. We can design, develop and manufacture cable ties of different sizes, types, performances, colors, materials, etc. according to your requests.
The nylon cable ties also call as plastic zip tie, wire tie wrap, nylon fasteners, tie straps. We have Self-locking, reusable (releasable), push mount, mountable head, In-line, metal insert, hook and loop and many other types, from small to big and short to long size, the length has 4 6 8 10 12 14 15 36 inch (100 150 200 300 350 380 920 1000 1200 1500mm), width has 2.5 3.6 4.8 7.6 9 12mm, strength is 18 40 50 120 175 250 LBS (8 18 22 55 80 110 KGS). Popular sizes have 2.5*100mm, 2.5*150mm, 3.6*150mm, 3.6*200mm, 3.6*300mm, 4.8*200mm, 4.8*300mm, 4.8*370mm, 4.8*430mm, 7.6*300mm, 7.6*380mm, 7.6*540mm, 9*600mm, 9*760mm, 9*920mm, 9*1020mm, 9*1200mm, 9*1450mm, etc. We have black, white, natural, yellow, blue, green, red, orange, brown, grey, orange, pink, purple and many other colors for chosen.
Nylon Cable Ties Fabrication By Features
1.Features: The Handcuffs like the connection of two cable ties, which can bind or fix two pipes or cables at the same time, also suitable for police, security guard or where someone need to be restrained.
2.Material：UL Approved Nylon 66.
3.Flammability: UL 94V-2.
4.Installation temperature：-10℃ to 85℃.
5.Working temperature：-40℃ to 85℃.
6.Color: Natural (white), Black, other colors are available as requested.
7.Certificates: UL, CE, RoHS, REACH, SGS.
1.Features: The two heads are independent with opposite pawl. The tie can pass through the two heads in turn and band two articles together.
2.Material：UL Approved Nylon 66.
3.Flammability: UL 94V-2.
4.Installation temperature：-10℃ to 85℃.
5.Working temperature：-40℃ to 85℃.
6.Color: Natural (white), Black, other colors are available as requested.
7.Certificates: UL, CE, RoHS, REACH, SGS.

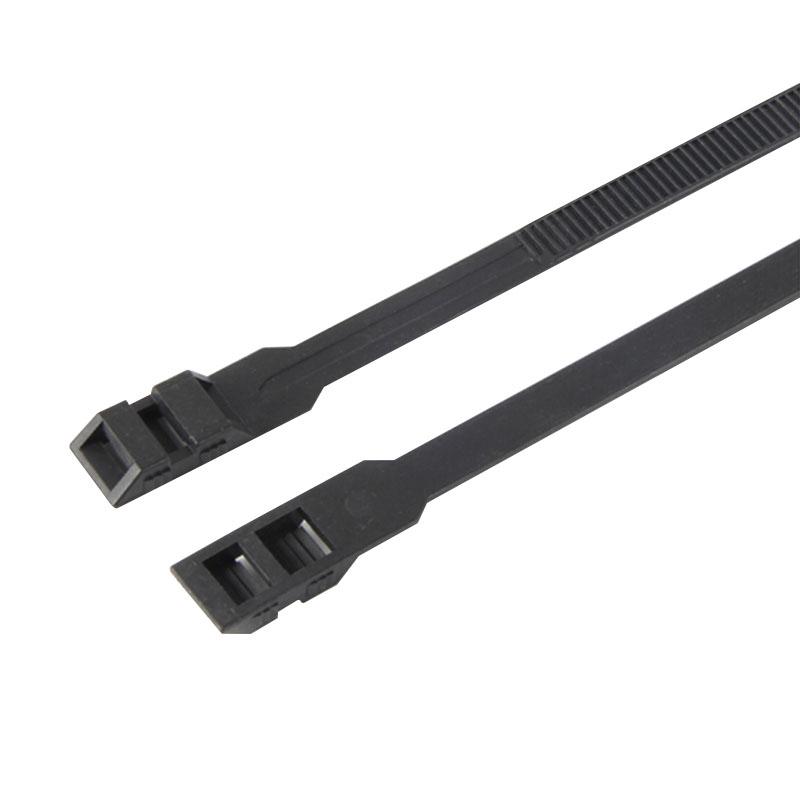

1.Features: Double Locking design has stronger tensile. The gripping teeth faces outside instead of inside, makes the cable ties fit the bundling surface tighter, and not easy to loose.
2.Material：UL Approved Nylon 66,
3.Flammability: UL 94V-2
4.Installation temperature：-10℃ to 85℃.
5.Working temperature：-40℃ to 85℃.
6.Color: Natural (white), Black, other colors are available as requested.
7.Certificates: UL, CE, RoHS, REACH, SGS
1.Features: The push-mount part outside the head of the cable tie can be pushed into a hole, tight and fix. The cable ties are tensile strong, Anti-Acid, Anti-erosion, not easy to aging.
2.Material：UL Approved Nylon 66.
3.Flammability: UL 94V-2.
4.Installation temperature：-10℃ to 85℃.
5.Working temperature：-40℃ to 85℃.
6.Color: Natural (white), Black, other colors are available as requested.
7.Certificates: UL, CE, RoHS, REACH, SGS.

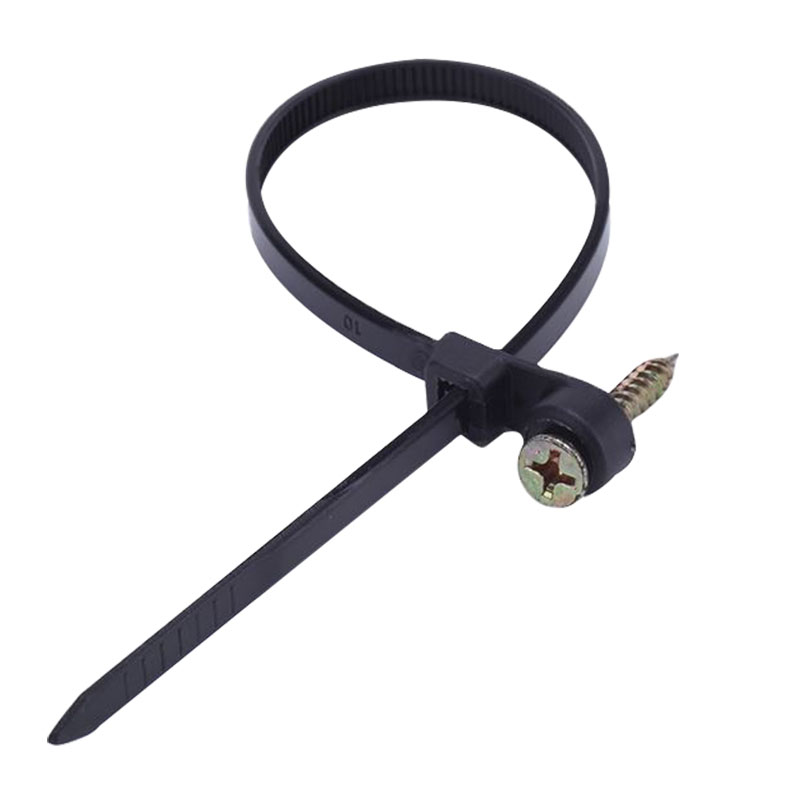

1.Features:The mounting hole outside the head of the cable tie allows for fixing to another surface by screw or rivet. The ties are tensile strong, Anti-Acid, Anti-erosion, not easy to aging.
2.Material: UL Approved Nylon 66.
3.Flammability: UL 94V-2.
4.Installation temperature：-10℃ to 85℃.
5.Working temperature：-40℃ to 85℃.
6.Color: Natural (white), Black, other colors are available as requested.
7.Certificates: UL, CE, RoHS, REACH, SGS.
1.Material：UL Approved Nylon 66
2.Flammability: UL 94V-2
3.Features: The tag at the front of the ties can be marked to distinguish different items.
4.Installation temperature：-10℃ to 85℃.
5.Working temperature：-40℃ to 85℃.
6.Color: Natural (white), Black, other colors are available as requested.
7.Certificates: UL, CE, RoHS, REACH, SGS

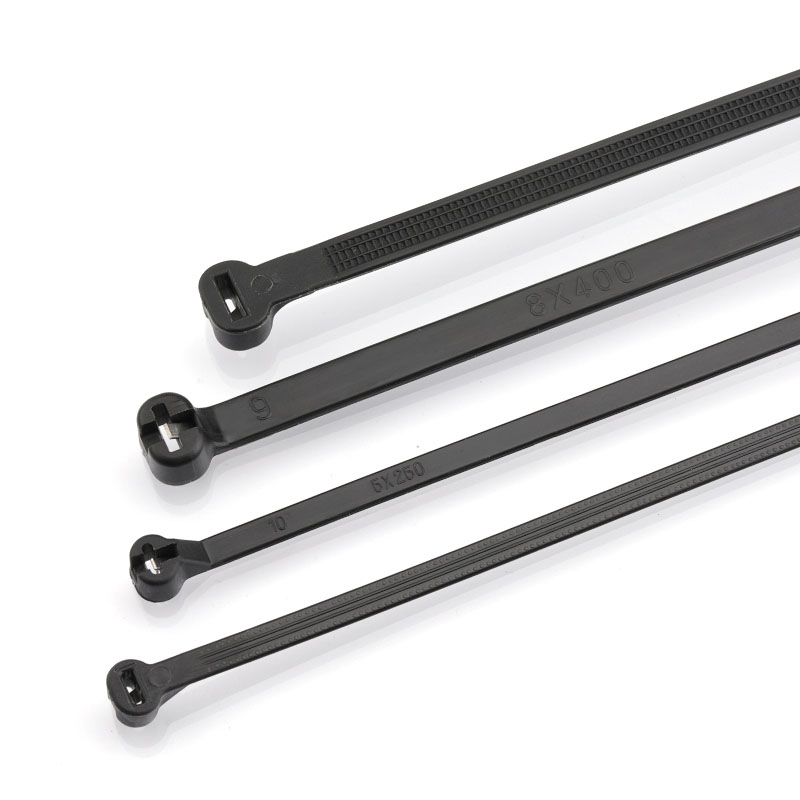

1.Features: stainless steel pawl in the head makes cable ties more stable and durable, not easy to aging.
2.Material: UL Approved Nylon 66 and SUS304.
3.Flammability: UL 94V-2
4.Installation temperature：-10℃ to 85℃.
5.Working temperature：-40℃ to 85℃.
6.Color: Natural (white), Black, other colors are available as requested.
7.Certificates: UL, CE, RoHS, REACH, SGS
Order Information Table
| MOQ | 1 piece for normal type |
| Sample | Free sample for normal type |
| Lead time | sample 1 day, bulk order 3-30 days according to order quantity |
| Trade terms | EXW, FCA, FOB, CIF, DDU, DDP |
| Transpor | Land, Sea, Express, Flight, Train, etc. |
| Payment | T/T, L/C, PayPal, Western Union, Alipay, Wechat, Cash, etc. |
Niuli in Brief
- China's National High-Tech Enterprise
- 15 years of cable ties production experience
- 10000 ㎡ factory area in Wenzhou
- 32 production lines to ensure ontime delivery
- 100+ front-line employees
- 15 million USD annual saless in year 2023
- Certified by UL, CE, ROHS, REACH, SGS, BSCI
- Export to 125 countries worldwide
- 1863 OEM projects completed
- Supplier for brand like MSS, CASIEL, C&C LIGHTING, GEBRO, STINDO, etc.
Production
Inspection
Package
Delivery
1. What is Hot runner injection systems
Hot runner systems are used in injection molds to inject molten plastic particles into the cavity of the mold. The hot runner mold is a new structure that heats the runners of the traditional mold or the three-plate mold, and does not need to take out the runners during each forming.
The hot runner is to keep the plastic in the runner and gate in a molten state by heating. Since there are heating rods and heating rings near or in the center of the runner, the entire runner from the nozzle outlet of the injection molding machine to the gate is in a high temperature state, so that the plastic in the runner keeps melting. Generally, it is not necessary to open the runner to take out the condensation When starting the machine again, it only needs to heat the runner to the required temperature. For this reason, the hot runner process is sometimes referred to as a hot manifold system, or as runnerless molding.
Advantage:
1. Save raw materials and reduce costs.
2. Shorten molding cycle and improve machine efficiency
3. Point gates can be used without using three-plate molds.
4. It can make the internal molecular structure of the product more stable and improve the mechanical properties.
5. Increase the degree of automation.
6. The number of products that can be injection molded at the same time (that is, the number of products per mold) is more, and the output is higher.
7. The quality of the injection molded parts of the multi-cavity mold is consistent.
8. Improve the surface aesthetics of injection molded products.
9. Smaller injection pressure can be used, which can effectively reduce the post-deformation of thin-walled products.
Disadvantage:
1. The mold structure is complex, the cost is high, and the maintenance cost is high.
2. It takes longer time for the process to be stable after starting up, resulting in more waste products at the beginning.
Niuli Electric uses newly automatic hot runner injection molding system, specializing in the production of nylon cable ties, welcome to inquire and cooperate.
