1.Material: Stainless Steel 201/304/316.

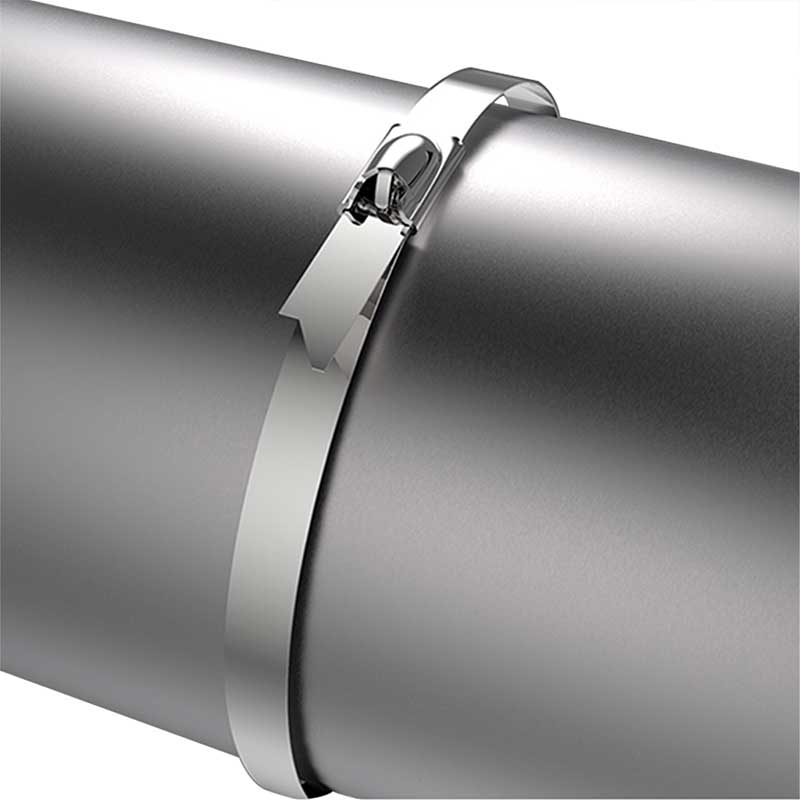

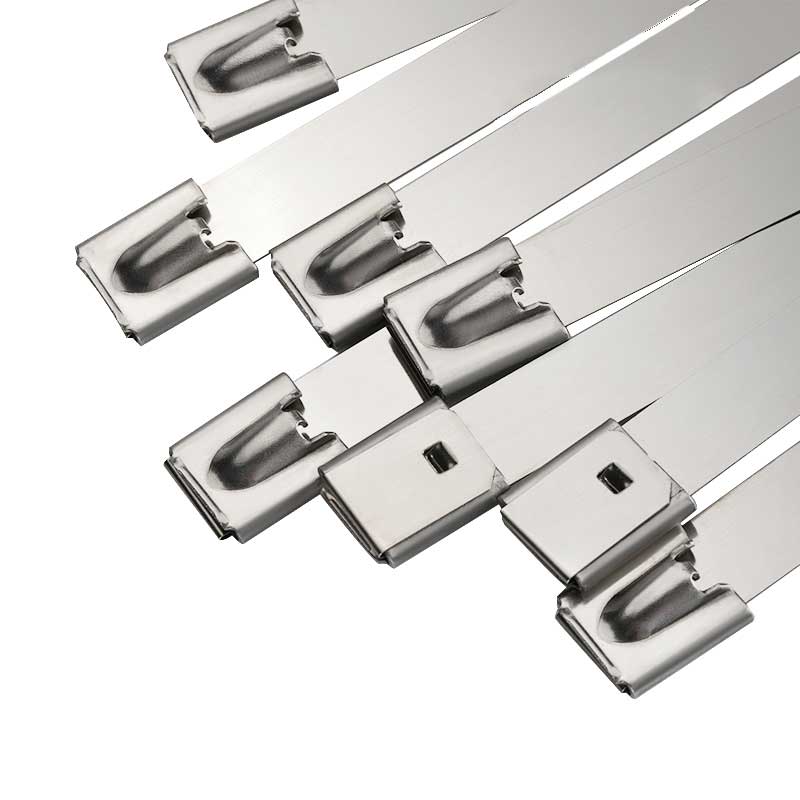

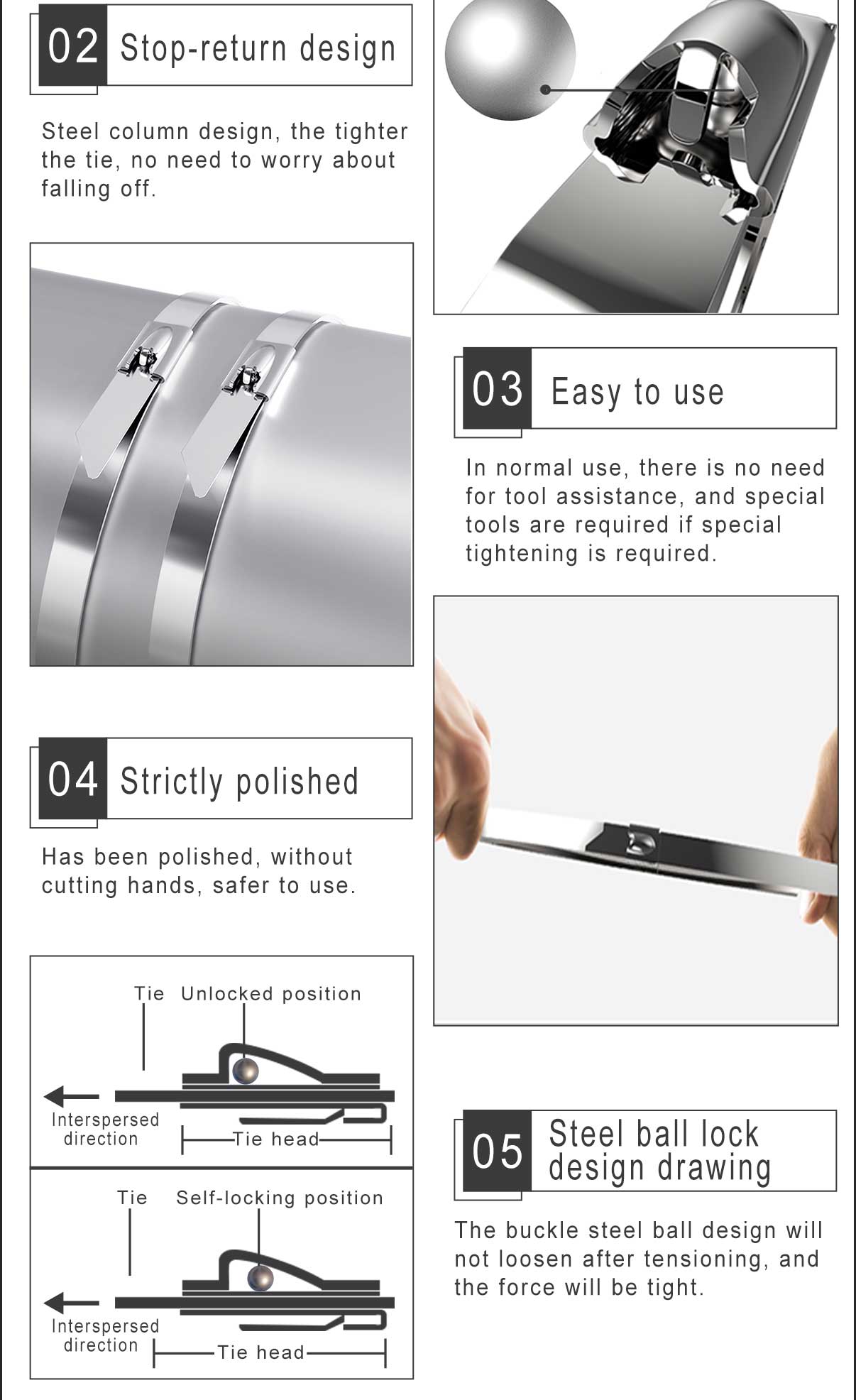

2.Features: Ball-lock, low profile, smooth rounded edges ensure safe, useful in extreme temperature environment. All width and length can be customized as request.
Flame retardant and non-toxic.
3.Working temperature：-60℃ to 550℃.
4.Color: Silver.
5.Certificates: CE, RoHS.
| Item No. | Width(W) | Length(L) | Thickness(T) | Max.Bundle Dia. (E) | Min.loop tensile strength | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | LBS | KGS | |
| NLSS-4.6×100 | 4.6 | 0.18 | 100 | 3.94 | 0.25 | 0.01 | 25 | 0.98 | 250 | 110 |
| NLSS-4.6×130 | 130 | 5.12 | 32 | 1.26 | ||||||
| NLSS-4.6×150 | 150 | 5.91 | 37 | 1.46 | ||||||
| NLSS-4.6×200 | 200 | 7.87 | 50 | 1.97 | ||||||
| NLSS-4.6×250 | 250 | 9.84 | 63 | 2.48 | ||||||
| NLSS-4.6×300 | 300 | 11.81 | 76 | 2.99 | ||||||
| NLSS-4.6×350 | 350 | 13.78 | 89 | 3.5 | ||||||
| NLSS-4.6×400 | 400 | 15.75 | 102 | 4.02 | ||||||
| NLSS-4.6×500 | 500 | 19.69 | 128 | 5.04 | ||||||
| NLSS-4.6×600 | 600 | 23.62 | 154 | 6.06 | ||||||
| NLSS-4.6×700 | 700 | 27.56 | 179 | 7.05 | ||||||
| NLSS-4.6×800 | 800 | 31.5 | 193 | 7.6 | ||||||
| NLSS-4.6×900 | 900 | 35.43 | 200 | 7.87 | ||||||
| NLSS-4.6×1000 | 1000 | 39.37 | 206 | 8.11 | ||||||
| NLSS-7.9×150 | 7.9 | 0.31 | 150 | 5.91 | 0.25 | 0.01 | 37 | 1.46 | 340 | 150 |
| NLSS-7.9×200 | 200 | 7.87 | 50 | 1.97 | ||||||
| NLSS-7.9×250 | 250 | 9.84 | 63 | 2.48 | ||||||
| NLSS-7.9×300 | 300 | 11.81 | 76 | 2.99 | ||||||
| NLSS-7.9×350 | 350 | 13.78 | 89 | 3.5 | ||||||
| NLSS-7.9×400 | 400 | 15.75 | 102 | 4.02 | ||||||
| NLSS-7.9×500 | 500 | 19.69 | 128 | 5.04 | ||||||
| NLSS-7.9×600 | 600 | 23.62 | 154 | 6.06 | ||||||
| NLSS-7.9×800 | 800 | 31.5 | 193 | 7.6 | ||||||
| NLSS-7.9×1000 | 1000 | 39.37 | 206 | 8.11 | ||||||
| NLSS-10×300 | 10 | 0.39 | 300 | 11.81 | 0.25 | 0.01 | 76 | 2.99 | 480 | 210 |
| NLSS-10×350 | 350 | 13.78 | 89 | 3.5 | ||||||
| NLSS-10×400 | 400 | 15.75 | 102 | 4.02 | ||||||
| NLSS-10×500 | 500 | 19.69 | 128 | 5.04 | ||||||
| NLSS-10×600 | 600 | 23.62 | 154 | 6.06 | ||||||
| NLSS-10×800 | 800 | 31.5 | 193 | 7.6 | ||||||
| NLSS-10×1000 | 1000 | 39.37 | 206 | 8.11 | ||||||
| NLSS-12×350 | 12 | 0.47 | 350 | 13.78 | 0.35 | 0.014 | 78 | 3.07 | 675 | 300 |
| NLSS-12×400 | 400 | 15.75 | 102 | 4.02 | ||||||
| NLSS-12×500 | 500 | 19.69 | 128 | 5.04 | ||||||
| NLSS-12×600 | 600 | 23.62 | 154 | 6.06 | ||||||
| NLSS-12×750 | 750 | 29.53 | 188 | 7.4 | ||||||
| NLSS-12×900 | 900 | 35.43 | 228 | 8.98 | ||||||
| NLSS-12×1100 | 1100 | 43.31 | 278 | 10.94 | ||||||
| NLSS-15×350 | 15 | 0.59 | 350 | 13.78 | 0.35 | 0.014 | 78 | 3.07 | 900 | 400 |
| NLSS-15×400 | 400 | 15.75 | 102 | 4.02 | ||||||
| NLSS-15×450 | 450 | 17.72 | 108 | 4.25 | ||||||
| NLSS-15×600 | 600 | 23.62 | 148 | 5.83 | ||||||
| NLSS-15×750 | 750 | 29.53 | 184 | 7.24 | ||||||
| NLSS-15×900 | 900 | 35.43 | 220 | 8.66 | ||||||
| NLSS-15×1100 | 1100 | 43.31 | 272 | 10.71 | ||||||
