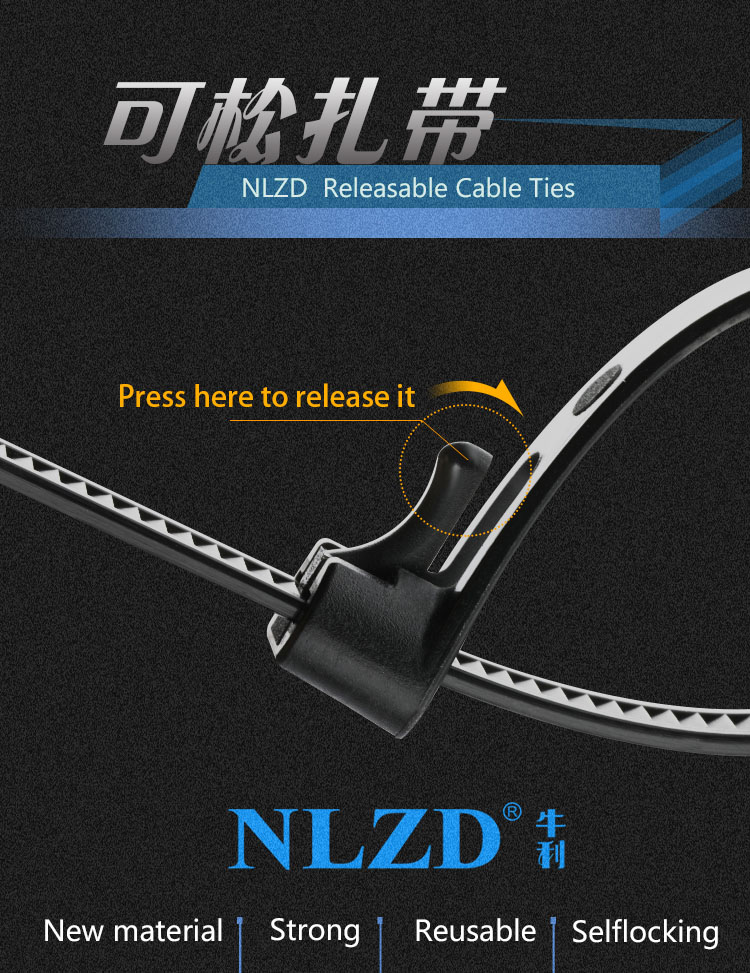

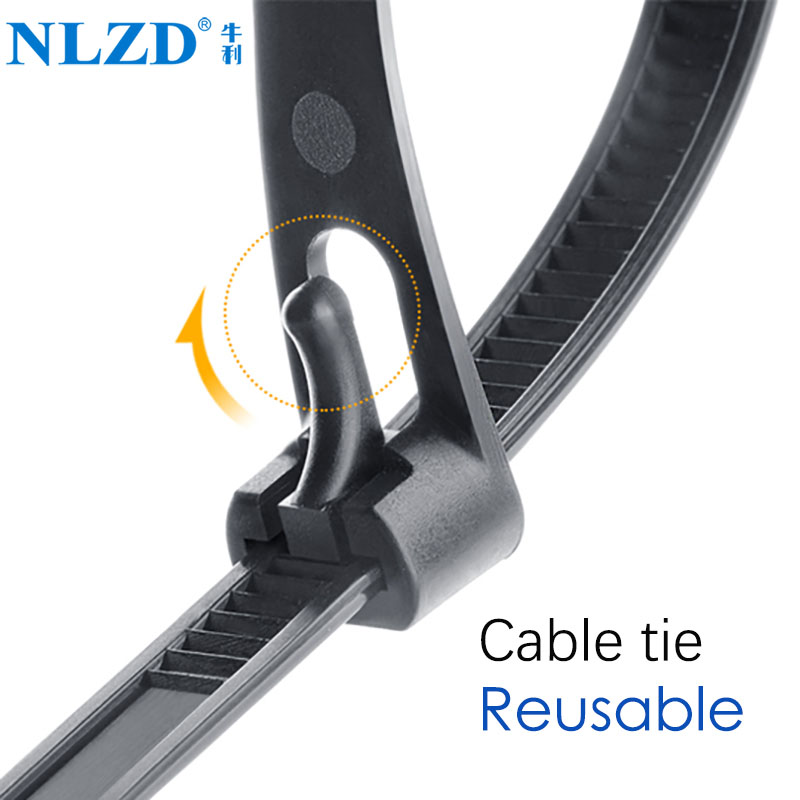

1.Features: can be released for repeated use, not easy to aging.
2.Material: UL Approved Nylon 66
3.Flammability: UL 94V-2
4.Installation temperature:-10℃ to 85℃.
5.Working temperature:-40℃ to 85℃.
6.Color: Natural (white), Black, other colors are available as requested.
7.Certificates: UL, CE, RoHS, REACH, SGS
Item No. | Width(W) | Length(L) | Bundle Diameter | Min.loop tensile strength | |||
mm | inch | mm | inch | mm | LBS | KGS | |
NL-3.6x150RT | 3.6 | 0.142 | 150 | 6 | 3-35 | 18 | 8 |
NL-4.8x200RT | 4.8 | 0.189 | 200 | 8 | 3-53 | 40 | 18 |
NL-4.8x300RT | 4.8 | 0.189 | 300 | 11.8 | 3-80 | 40 | 18 |
NL-7.2x150RT | 7.2 | 0.283 | 150 | 6 | 4-35 | 66 | 30 |
NL-7.2x200RT | 7.2 | 0.283 | 200 | 8 | 4-53 | 66 | 30 |
NL-7.2x250RT | 7.2 | 0.283 | 250 | 9.8 | 4-65 | 66 | 30 |
NL-7.2x300RT | 7.2 | 0.283 | 300 | 11.8 | 4-80 | 66 | 30 |
NL-7.2x350RT | 7.2 | 0.283 | 350 | 13.8 | 4-95 | 66 | 30 |
NL-7.2x400RT | 7.2 | 0.283 | 400 | 15.7 | 4-108 | 66 | 30 |
NL-7.2x450RT | 7.2 | 0.283 | 450 | 17.7 | 4-124 | 66 | 30 |
NL-7.2x500RT | 7.2 | 0.283 | 500 | 19.7 | 4-138 | 66 | 30 |
NL-7.2x710RT | 7.2 | 0.283 | 710 | 28 | 4-208 | 66 | 30 |
NL-8.8x1000RT | 8.8 | 0.346 | 1000 | 39.4 | 5-292 | 130 | 60 |
