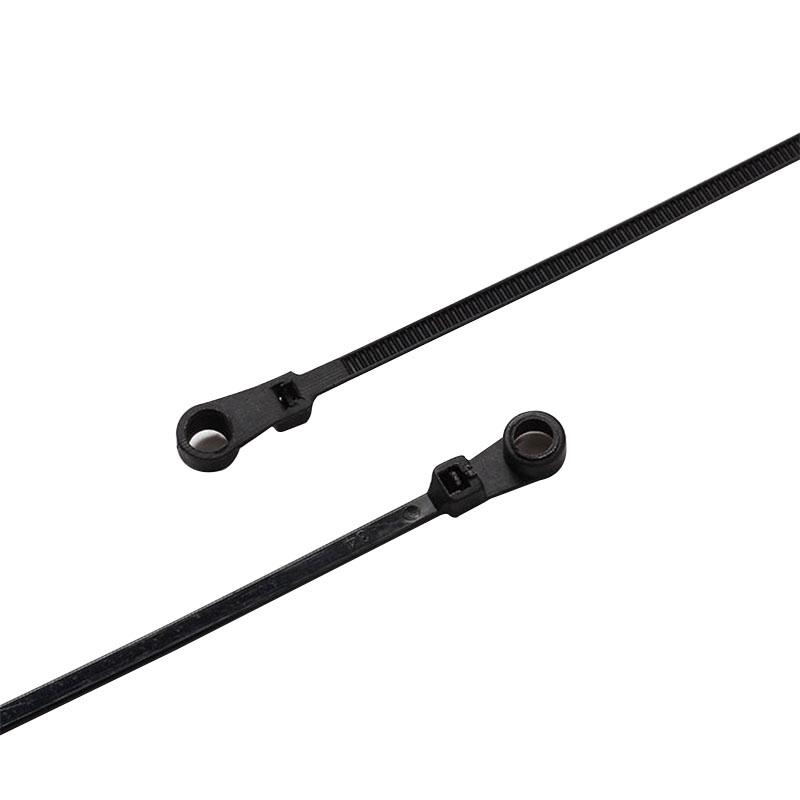

1.Features:The mounting hole outside the head of the cable tie allows for fixing to another surface by screw or rivet. The ties are tensile strong, Anti-Acid, Anti-erosion, not easy to aging.
2.Material: UL Approved Nylon 66.
3.Flammability: UL 94V-2.
4.Installation temperature:-10℃ to 85℃.
5.Working temperature:-40℃ to 85℃.
6.Color: Natural (white), Black, other colors are available as requested.
7.Certificates: UL, CE, RoHS, REACH, SGS.
Item No. | Width(W) | Length(L) | Hole Diameter(D) | Max.Bundle Dia. (E) | Min.loop tensile strength | |||||
mm | inch | mm | inch | mm | inch | mm | inch | LBS | KGS | |
NL-3.6x100MH | 3.6 | 0.14 | 100 | 4 | 4.5 | 0.18 | 22 | 0.87 | 40 | 18 |
NL-3.6x150MH | 3.6 | 0.14 | 150 | 6 | 4.5 | 0.18 | 35 | 1.38 | 40 | 18 |
NL-4.6x160MH | 4.8 | 0.18 | 160 | 6.3 | 5.5 | 0.22 | 35 | 1.38 | 55 | 25 |
NL-4.8x200MH | 4.8 | 0.19 | 220 | 8.7 | 5.5 | 0.22 | 53 | 2.09 | 55 | 25 |
NL-4.8x300MH | 4.8 | 0.19 | 300 | 11.8 | 5.5 | 0.22 | 80 | 3.15 | 55 | 25 |
NL-4.8x350MH | 4.8 | 0.19 | 350 | 13.8 | 5.5 | 0.22 | 93 | 3.66 | 55 | 25 |
NL-4.8x400MH | 4.8 | 0.19 | 400 | 15.7 | 5.5 | 0.22 | 108 | 4.25 | 55 | 25 |
NL-7.6x300MH | 7.6 | 0.3 | 300 | 11.8 | 6.8 | 0.27 | 80 | 3.15 | 120 | 55 |
NL-7.6x350MH | 7.6 | 0.3 | 350 | 13.8 | 6.8 | 0.27 | 93 | 3.66 | 120 | 55 |
NL-7.6x380MH | 7.6 | 0.3 | 380 | 15 | 6.8 | 0.27 | 102 | 4.02 | 120 | 55 |
