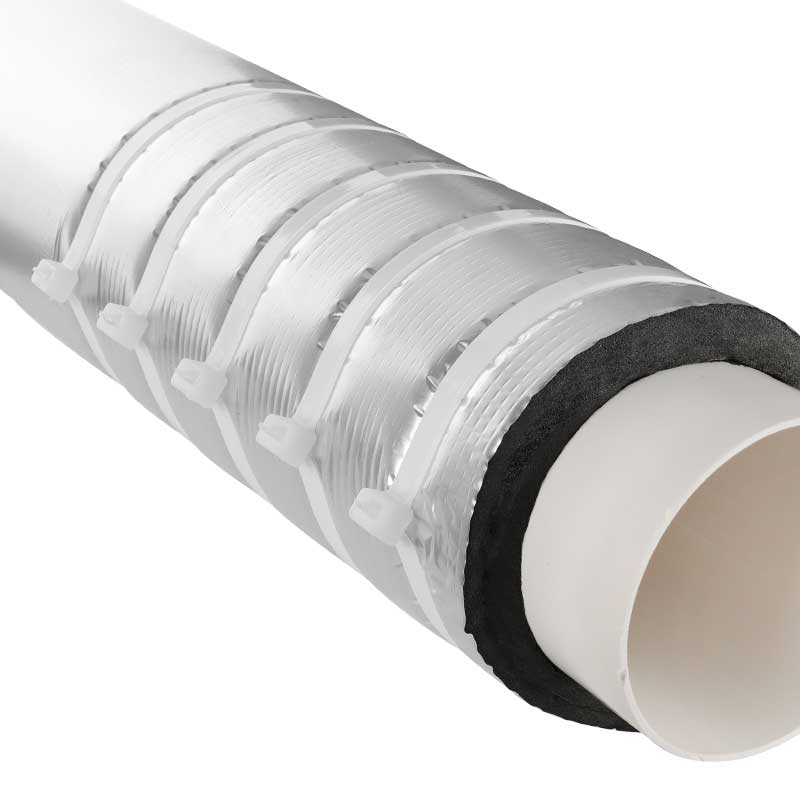

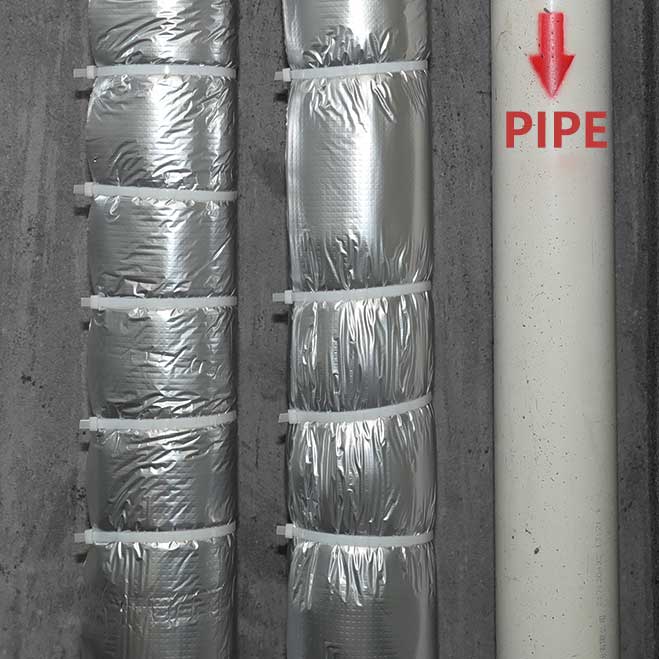

1.Features: Especially used in Heating Ventilation and Air Conditioning systems, Super tensile strength, Heat-resistance, Anti-Acid, Anti-erosion, not easy to aging.
2.Material: UL Approved Nylon 66.
3.Flammability: UL 94V-2.
4.Installation temperature:-10℃ to 85℃.
5.Working temperature:-40℃ to 85℃.
6.Color: Natural (white), Black, other colors are available as requested.
7.Certificates: UL, CE, RoHS, REACH, SGS.
Item No. | Width(W) | Length(L) | Max.Bundle Dia. (E) | Min.loop tensile strength | ||||
mm | inch | mm | inch | mm | inch | LBS | KGS | |
NL-9×800 | 9 | 0.35 | 800 | 31.5 | 234 | 9.21 | 175 | 80 |
NL-9×920 | 9 | 0.35 | 920 | 36.2 | 275 | 10.83 | 175 | 80 |

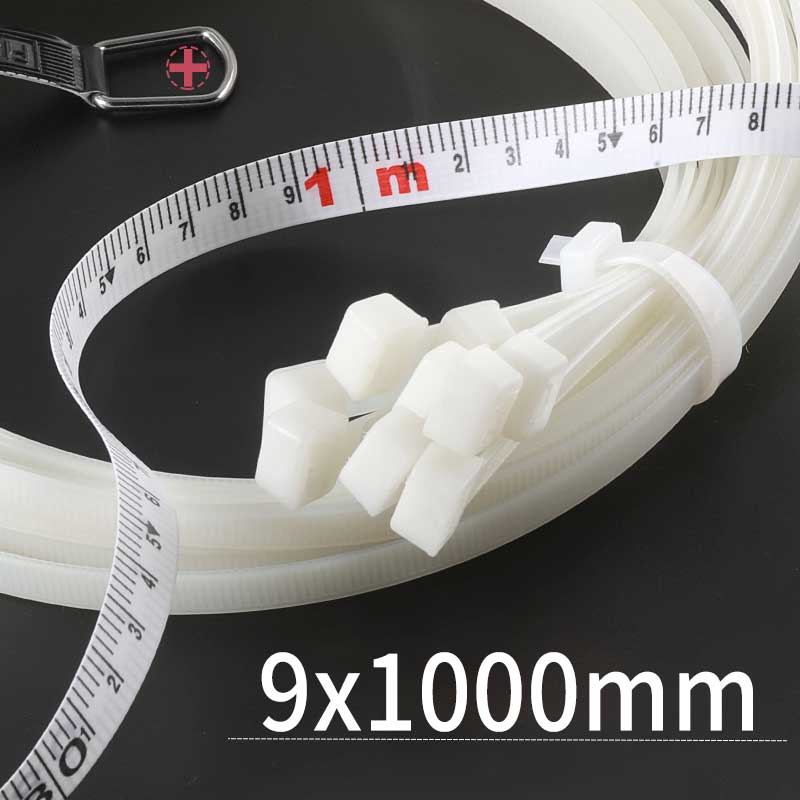

NL-9×1000 | 9 | 0.35 | 1000 | 39.4 | 292 | 11.5 | 175 | 80 |
NL-9×1200 | 9 | 0.35 | 1200 | 47.2 | 340 | 13.39 | 175 | 80 |
NL-9×1350 | 9 | 0.35 | 1350 | 53.1 | 380 | 14.96 | 175 | 80 |
NL-9×1500 | 9 | 0.35 | 1500 | 59.1 | 430 | 16.93 | 175 | 80 |
