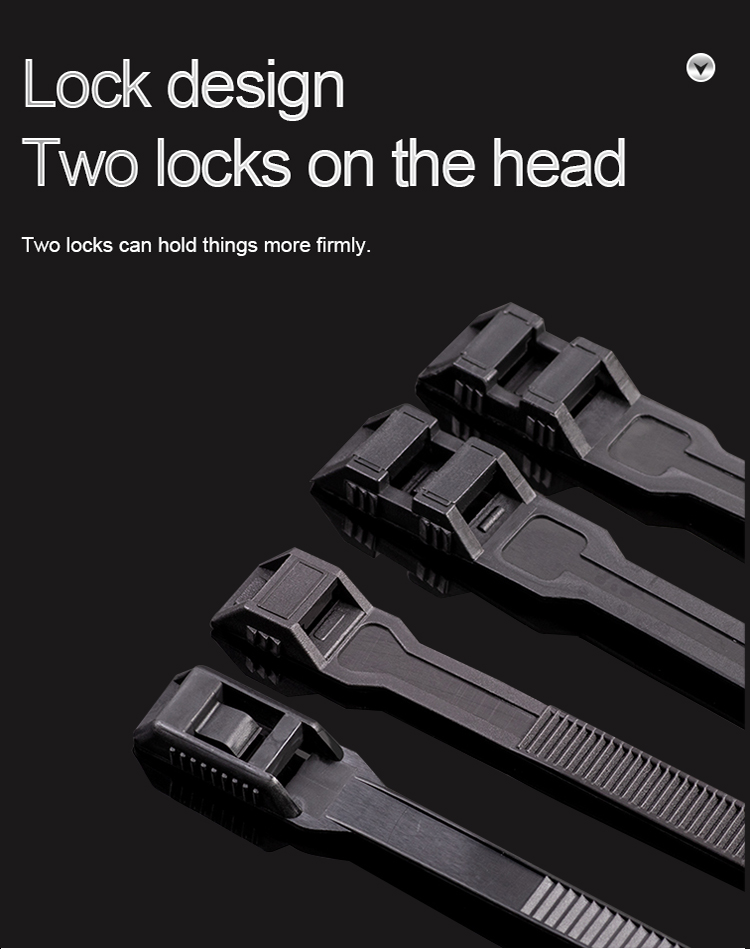

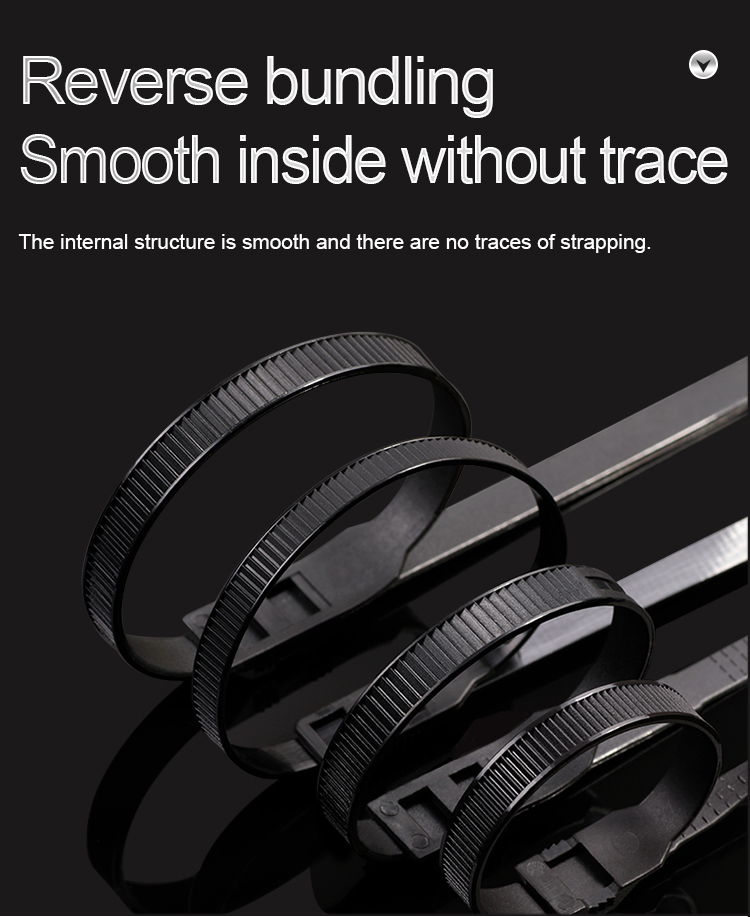

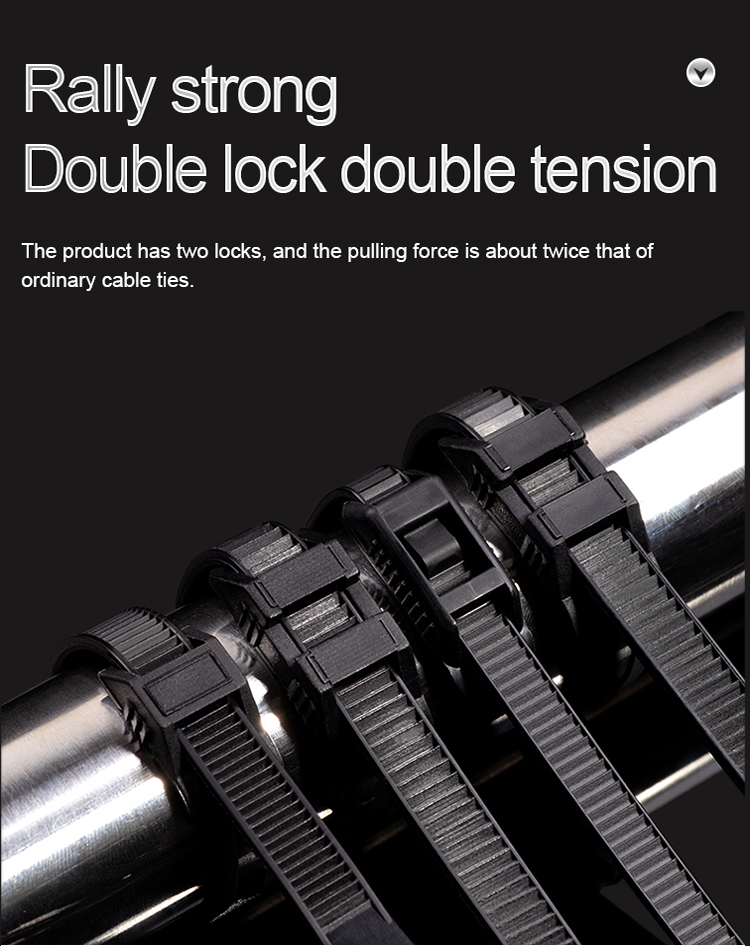

1.Features: Double Locking design has stronger tensile. The gripping teeth faces outside instead of inside, makes the cable ties fit the bundling surface tighter, and not easy to loose.
2.Material:UL Approved Nylon 66,
3.Flammability: UL 94V-2
4.Installation temperature:-10℃ to 85℃.
5.Working temperature:-40℃ to 85℃.
6.Color: Natural (white), Black, other colors are available as requested.
7.Certificates: UL, CE, RoHS, REACH, SGS
Item No. | Width(W) | Length(L) | Max.Bundle Dia. (E) | Min.loop tensile strength | ||||
mm | inch | mm | inch | mm | inch | LBS | KGS | |
NL-6x115DL | 6 | 0.24 | 115 | 4.5 | 26 | 1.42 | 77 | 35 |
NL-6x180DL | 6 | 0.24 | 180 | 7.1 | 40 | 2.09 | 77 | 35 |
NL-9x180DL | 9 | 0.35 | 180 | 7.1 | 40 | 2.56 | 110 | 50 |
NL-9x260DL | 9 | 0.35 | 260 | 10.2 | 62 | 3.15 | 110 | 50 |
NL-9x300DL | 9 | 0.35 | 300 | 11.8 | 80 | 3.66 | 110 | 50 |
NL-9x350DL | 9 | 0.35 | 350 | 13.8 | 93 | 4.02 | 110 | 50 |
NL-9x510DL | 9 | 0.35 | 510 | 20.1 | 140 | 4.25 | 110 | 50 |
NL-9x760DL | 9 | 0.35 | 760 | 29.9 | 220 | 4.88 | 110 | 50 |
