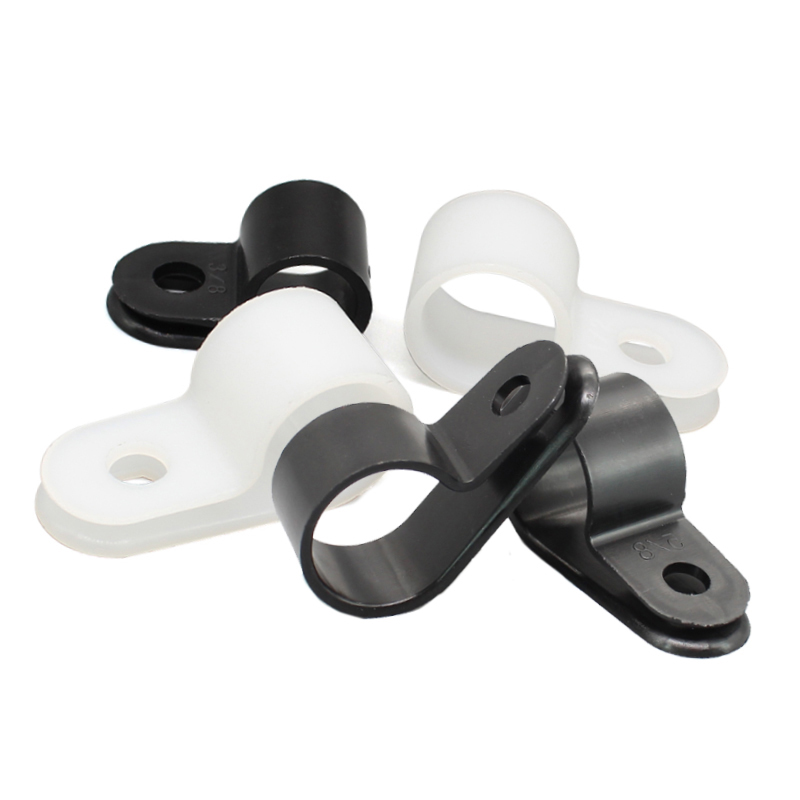

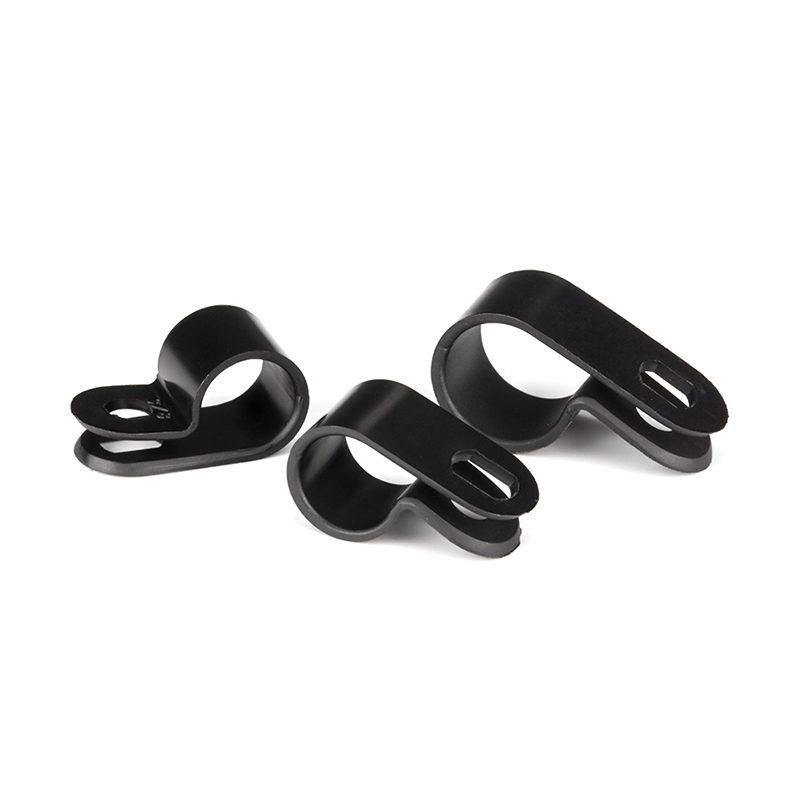

1.Material: made of PE or PA
2.Features: smooth body without burr, easy to install, durable and firm, anti-acid, anti-alkali , long using life.
3.Color: White, Black, other colors are available as requested.
4.Certificates: CE, RoHS, REACH, SGS

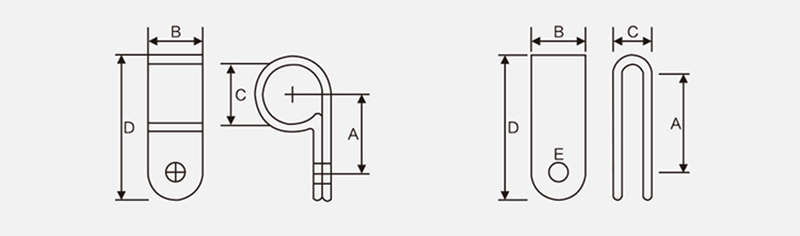

| Item No. | Hole distance(A) | Width(B) | C | Lenght(D) | Mount hole dia.(E) | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | |
| NLCR-1/8 | 9.5 | 0.37 | 9 | 0.35 | 3.3 | 0.13 | 17 | 0.67 | 4 | 0.16 |
| NLCR-3/16 | 11.3 | 0.44 | 9.5 | 0.37 | 5.5 | 0.22 | 18.5 | 0.73 | 4 | 0.16 |
| NLCR-1/4 | 11.5 | 0.45 | 9.5 | 0.37 | 6.5 | 0.26 | 21 | 0.83 | 4.3 | 0.17 |
| NLCR-5/16 | 11.5 | 0.45 | 9.5 | 0.37 | 8.5 | 0.33 | 21.7 | 0.85 | 4 | 0.16 |
| NLCR-3/8 | 12.5 | 0.49 | 9.5 | 0.37 | 10.4 | 0.41 | 24 | 0.94 | 4.4 | 0.17 |
| NLCR-1/2 | 14.5 | 0.57 | 9.5 | 0.37 | 12 | 0.47 | 25.5 | 1 | 4.3 | 0.17 |
| NLCR-5/8 | 17 | 0.67 | 9.5 | 0.37 | 14 | 0.55 | 30.5 | 1.2 | 4 | 0.16 |
| NLCR-3/4 | 19.5 | 0.77 | 12 | 0.47 | 19 | 0.75 | 35.5 | 1.4 | 4.7 | 0.19 |
| NLCR-1 | 23 | 0.91 | 13 | 0.51 | 23 | 0.91 | 44 | 1.73 | 4.9 | 0.19 |
| NLCR-1-3/16 | 23 | 0.91 | 12.5 | 0.49 | 30 | 1.18 | 47 | 1.85 | 5 | 0.2 |
| NLCR-2 | 38 | 1.5 | 12.5 | 0.49 | 50 | 1.97 | 72 | 2.83 | 5 | 0.2 |
| NLCU-1/8 | 8.2 | 0.32 | 9.5 | 0.37 | 3.2 | 0.13 | 17.5 | 0.69 | 5 | 0.2 |
| NLCU-3/16 | 10.5 | 0.41 | 9.5 | 0.37 | 4.8 | 0.19 | 19 | 0.75 | 5 | 0.2 |
| NLCU-1/4 | 10.1 | 0.4 | 10 | 0.39 | 6.4 | 0.25 | 20 | 0.79 | 5 | 0.2 |
| NLCU-5/16 | 11.5 | 0.45 | 10 | 0.39 | 7.9 | 0.31 | 22.5 | 0.89 | 5 | 0.2 |
| NLCU-3/8 | 12.3 | 0.48 | 12 | 0.47 | 9.5 | 0.37 | 24.7 | 0.97 | 5 | 0.2 |
| NLCU-1/2 | 16.1 | 0.63 | 12 | 0.47 | 12.7 | 0.5 | 31.5 | 1.24 | 5 | 0.2 |
| NLCU-5/8 | 18.3 | 0.72 | 12 | 0.47 | 15.8 | 0.62 | 33 | 1.3 | 5 | 0.2 |
| NLCU-3/4 | 20.3 | 0.8 | 12 | 0.47 | 19.4 | 0.76 | 38.5 | 1.52 | 5 | 0.2 |
| NLCU-1 1/2 | 35.5 | 1.4 | 12 | 0.47 | 36.7 | 1.44 | 91 | 3.58 | 5 | 0.2 |
